Dual-Axis L-Type Lifting Welding Positioner for Robotic Welding

1. Comprehensive Product Overview

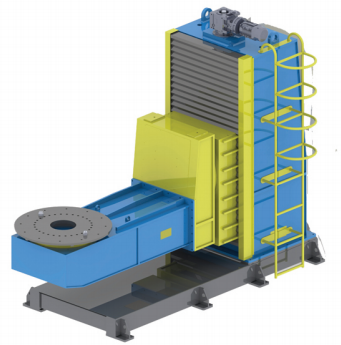

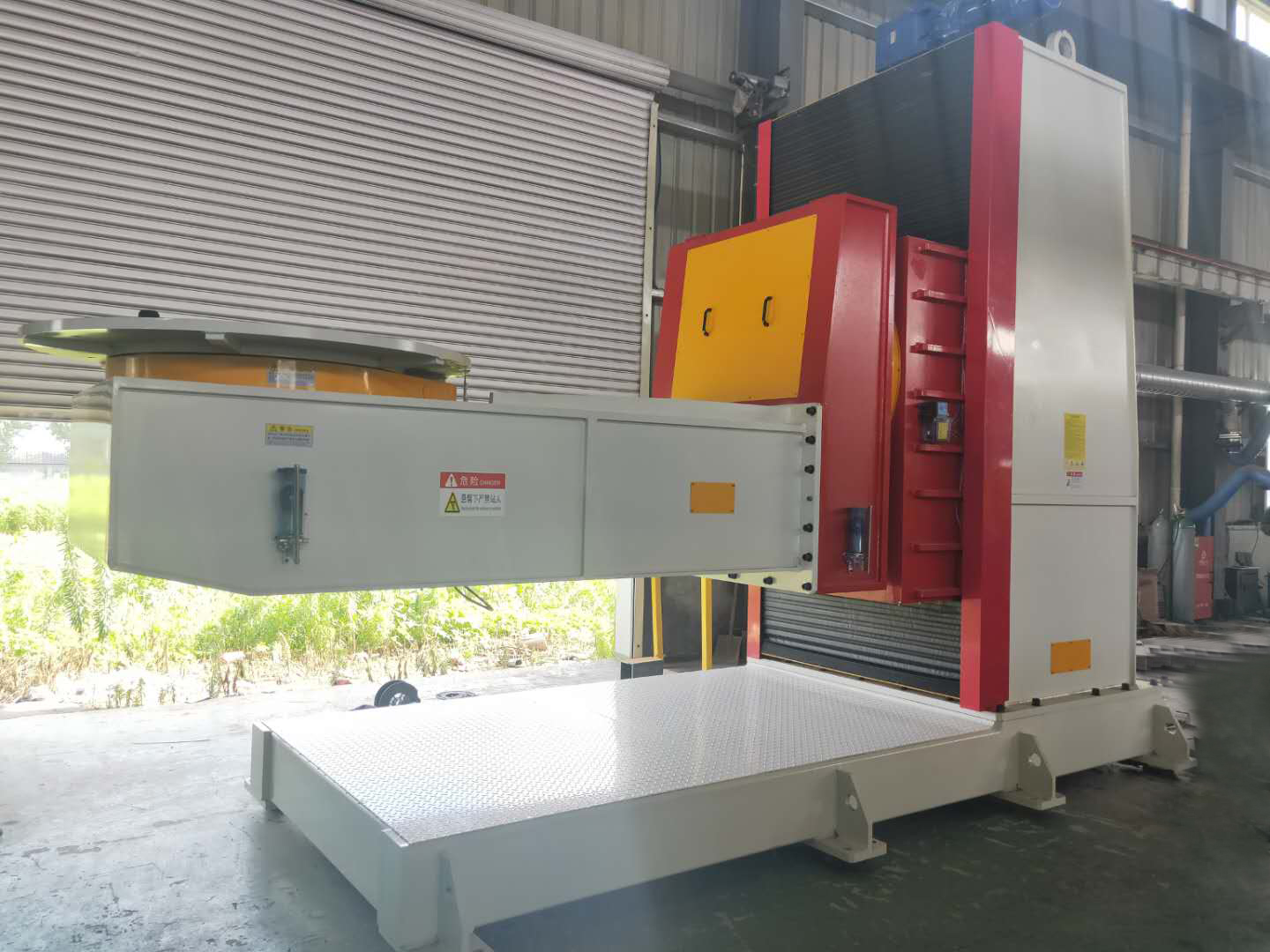

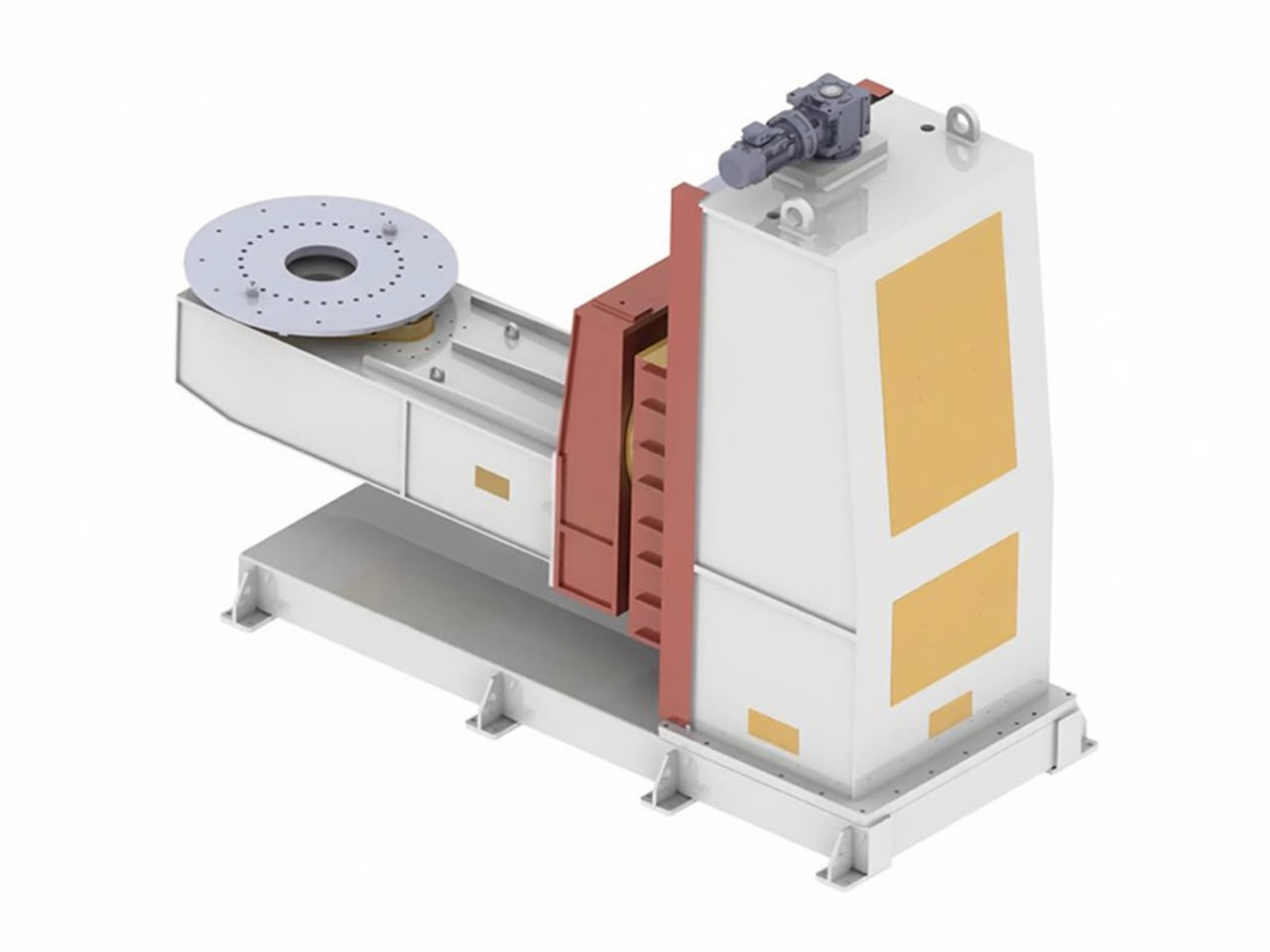

The WRS Dual-Axis L-Type Lifting Welding Positioner is designed for robotic welding automation and flexible workpiece positioning. Its L-type structure provides two-axis movement for lifting, rotating and accurately positioning workpieces during welding.

The positioner can be integrated with industrial welding robots from major brands such as FANUC, ABB, KUKA and Yaskawa, making it suitable for customized robotic welding cells and automated production lines.

As a manufacturer of robotic welding positioners and 7th-axis units, WRS Robotics provides customized positioner solutions for system integrators, including different payload capacities, dimensions, rotation ranges and robot integration configurations.

Key Features:

Dual-axis L-type positioning structure
Lifting and rotary positioning
High-load capacity for industrial welding
Suitable for robotic welding applications
Compatible with major industrial robot brands
Customizable dimensions and specifications
Designed for welding automation and system integration

2. Technical Specifications

Robotic Welding Automation

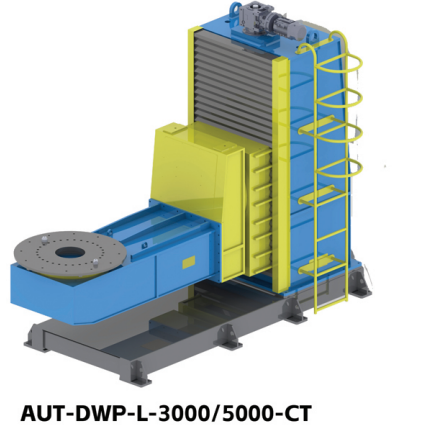

Rated Payload	3000kg(The countershaft’s axis radius sR1500mm)	5000kg(The countershaft’s axis radius ≤R2000mm)
Standard radius of gyration	R1600mm	R2100mm
Maximum load eccentricity	s750mm	≤800mm
The height of clamping	≤1500mm(Over 1500mm ,the bob-weight will increase with the actual load)	≤1600mm(Over 1600mm ,the bob-weight will increase with the actual load)
Elevatable height	0-1000mm	500mm
Maximum rotation angle of axis 1	±180°	±180°
Maximum gyration angle of axis 2	±360°	±360°
Elevatable speed	0-1000mm/min	0-1000mm/min
Rated rotation speed of axis 1	15%S	15%S
Rated gyration speed of axis 2	18%S	18/S
Repeat positioning accuracy	±0.20mm(At R=1500mm)	±0.25mm(At R=2000mm)
Positioner dimension(LWH)	3800mm1400mm2600mm	4800mm1600mm3200mm
Standard axis 2 gyration disc size	①1500mm	①2000mm
Height of gyration disc	800mm-1800mm	800mm-2300mm
Equipment net weight	About 6500kg	About 10000kg

3. OEM Customization & Robot Integration

We support OEM customization and robot integration for different welding automation applications.

Our robotic welding positioners, linear tracks, guide rails, and gantry systems are customized according to the robot system, workpiece requirements, workspace, payload, and specific application.

Compatible with major industrial robot brands, including ABB, KUKA, FANUC, and YASKAWA.

From individual positioning units to complete robot track and gantry systems, WRS Robotics provides application-specific solutions for system integrators.

4. Typical Industrial Applications

Automotive and automotive parts welding
Steel structure and frame welding
Construction machinery welding
Heavy-duty component welding
Customized robotic welding cells

Advantages

Dual-axis motion for flexible positioning and welding access
Lifting function helps optimize welding height and robot reach
High load capacity for different workpiece sizes and weights
Improved welding accessibility and reduced repositioning time
Customizable payload, dimensions, stroke, and rotation range
Easy integration into robotic welding automation systems

WRS Robotics provides OEM and application-specific welding positioners for system integrators and automated production lines.

6. Why Choose WRS Robotics?

Direct Manufacturer – In-house design and manufacturing of robotic welding positioners and 7th-axis systems.
OEM Customization – Customized payload, dimensions, stroke, rotation, and mounting configuration.
Multi-Brand Compatibility – Supports ABB, KUKA, FANUC, and YASKAWA robot systems.
Application-Based Design – Solutions are designed around your workpiece, robot, workspace, and welding process.
System Integration Ready – Easy integration into robotic welding cells, production lines, and turnkey automation systems.
Technical Support – 3D CAD, engineering support, and technical assistance for system integrators.
