Pedal-Type Organ-Type Single-Axis Linear Rail for Industrial Robots

Robot External Axis Tracks

WRS Robotics manufactures robot external axis tracks and linear rail systems designed to extend the working range of industrial robots. Our floor tracks can be integrated with ABB, KUKA, FANUC, YASKAWA and other major robot brands for automated welding, handling, assembly, cutting, and other industrial applications.

Depending on the working environment and cable protection requirements, WRS offers different track configurations, including external drag chain tracks, floor tracks, and accordion-covered tracks.

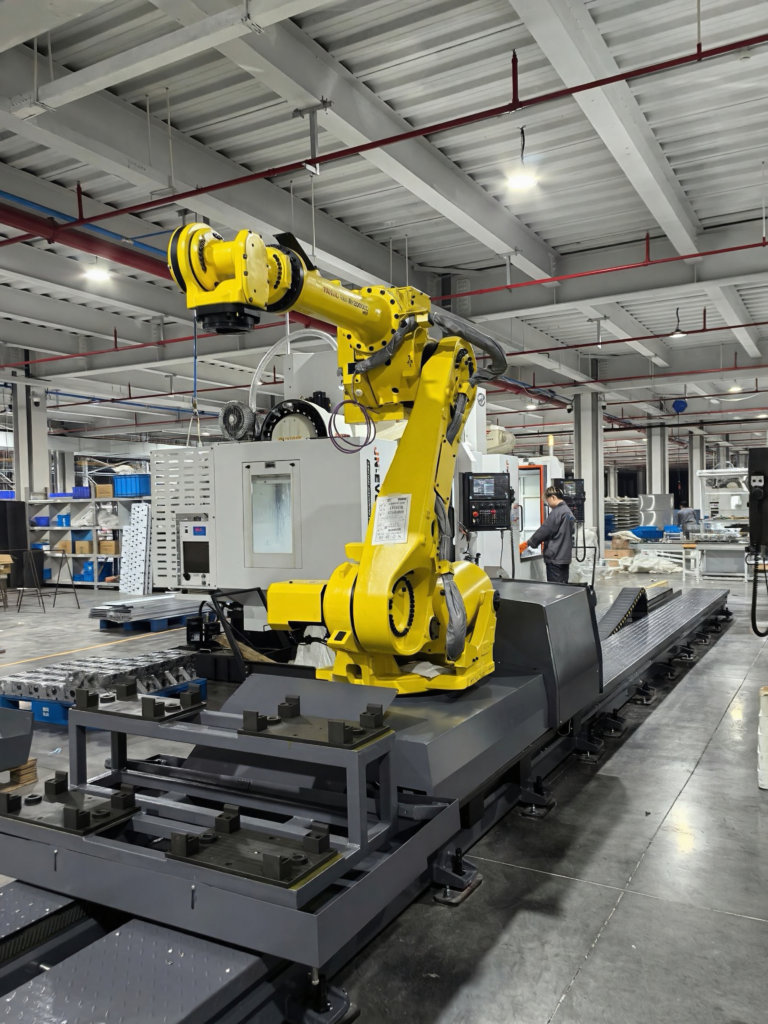

Robot Linear Rail

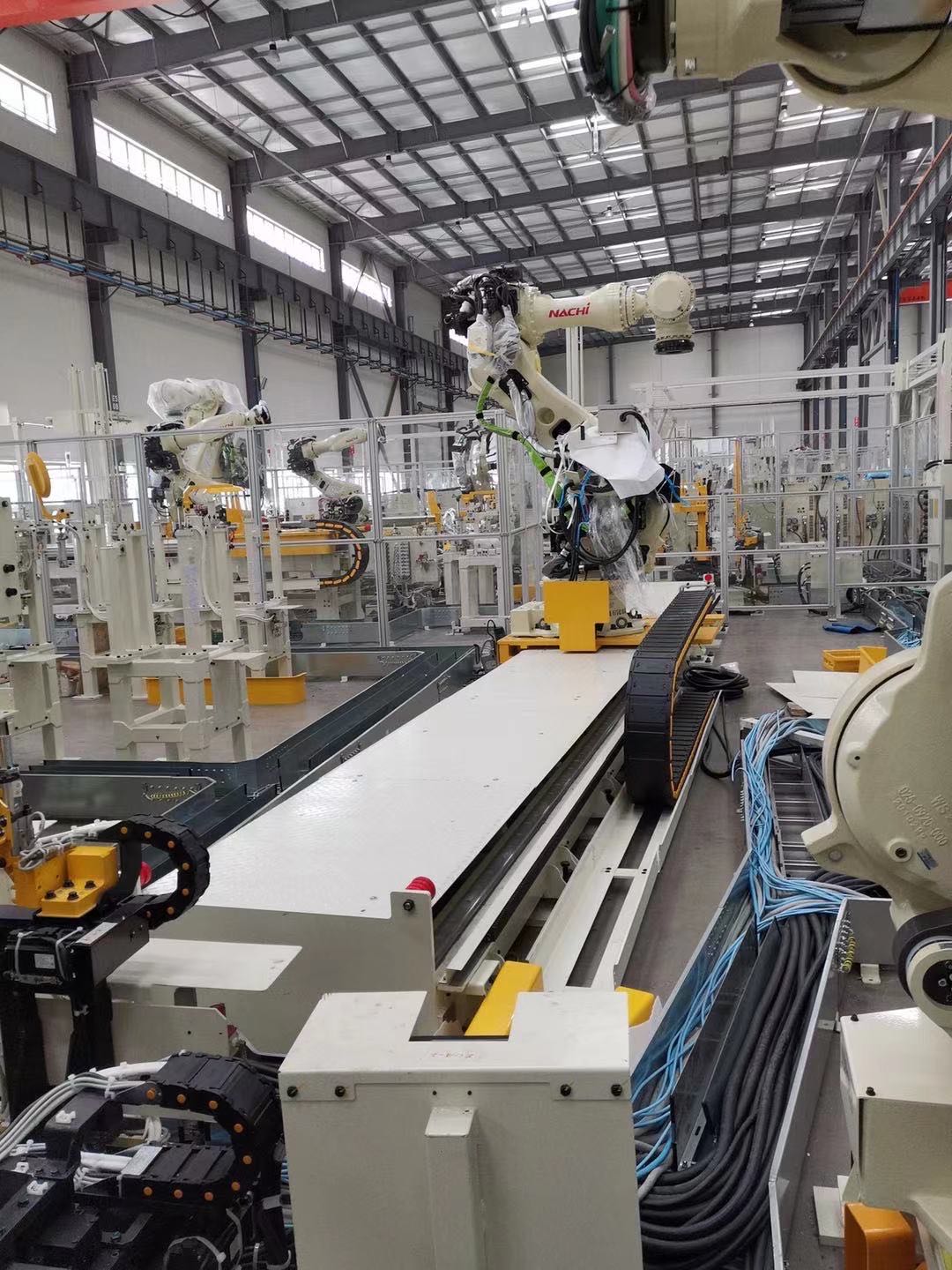

1. External Drag Chain Track

The External Drag Chain Track uses a heavy-duty cable drag chain to guide and protect robot cables, welding cables, air lines, and other utilities during robot movement.

The drag chain is positioned externally along the linear track, providing convenient cable routing and easy access for inspection and maintenance.

Applications:

Robotic welding cells
Material handling and palletizing
Cutting and machining
Assembly automation
Long-stroke robot applications

Features & Advantages:

Heavy-duty steel linear track structure
External cable drag chain for organized cable routing
Protects cables and hoses during continuous movement
Easy inspection, maintenance, and cable replacement
Suitable for long travel distances
Compatible with major industrial robot brands
Customizable track length and robot mounting configuration

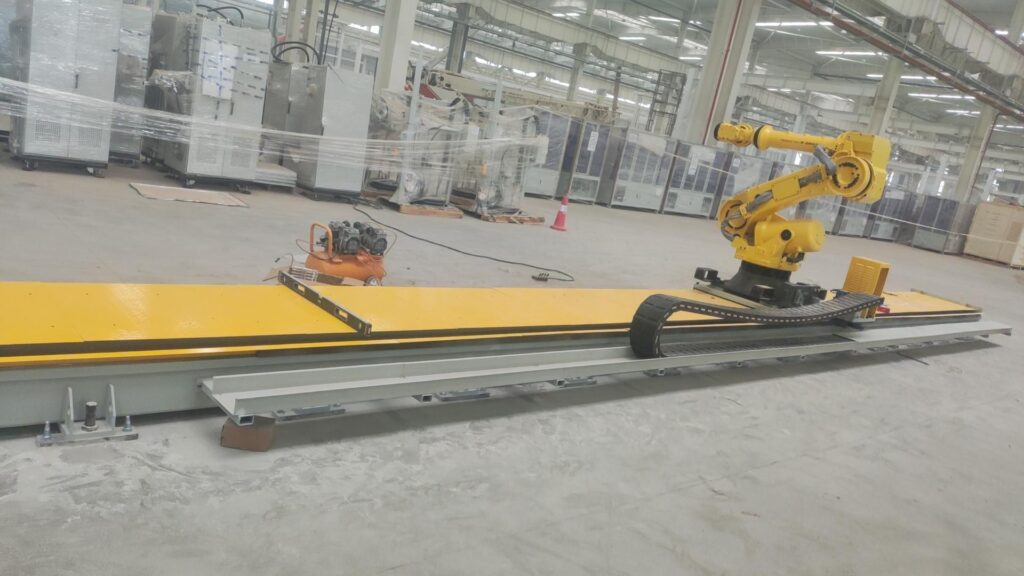

2. Floor Track

The Floor Track is a floor-mounted linear axis designed to move an industrial robot along a fixed horizontal path. It provides an extended working envelope, allowing one robot to access multiple workstations or cover large workpieces.

WRS floor tracks can be configured with different rail lengths, robot mounting platforms, drive systems, and payload capacities according to the application.

Applications:

Robotic welding
Large workpiece welding
Automotive and construction machinery manufacturing
Robot loading and unloading
Multi-station production lines
Heavy-duty robotic automation

Key Advantages:

Extends robot working range
Improves workspace utilization
Allows one robot to serve multiple work areas
Stable and rigid structure for industrial applications
Flexible track length and configuration
Suitable for synchronized robot and positioner applications
Designed for system integrators and customized automation cells

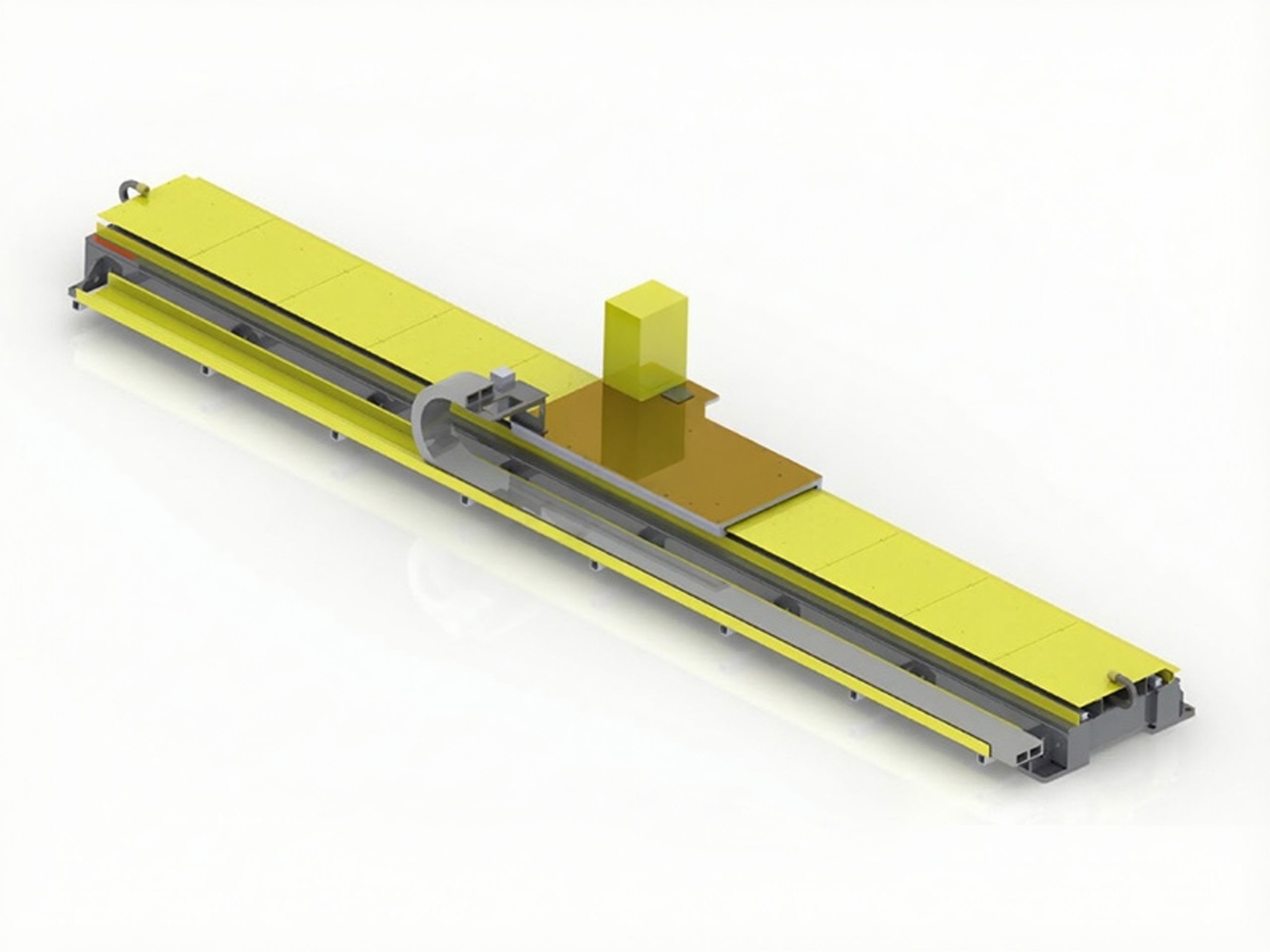

robot track

3. Accordion / Organ-Covered Track

The Accordion-Covered Linear Track, also known as an Organ-Type Covered Track, uses a flexible protective cover to shield the linear guide and moving components from welding spatter, dust, chips, and other contaminants.

It is particularly suitable for harsh industrial environments where protection of the precision motion components is important.

Applications:

Robotic welding
Laser cutting
Machining environments
Dusty or contaminated production areas
High-spatter welding applications

Features & Advantages:

Protective accordion-style cover
Helps prevent welding spatter and dust from reaching the guide system
Reduces contamination-related maintenance
Compact and clean appearance
Suitable for demanding industrial environments
Supports long-stroke robot movement
Customizable according to robot, payload, and workspace requirements

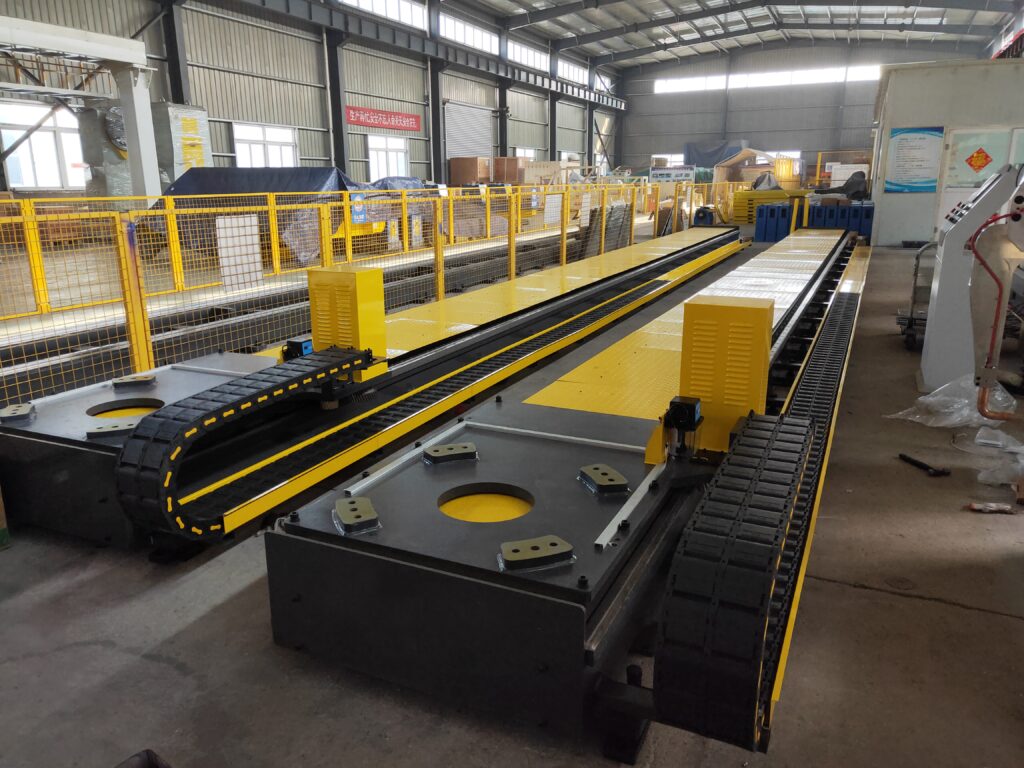

Industrial Robot Track

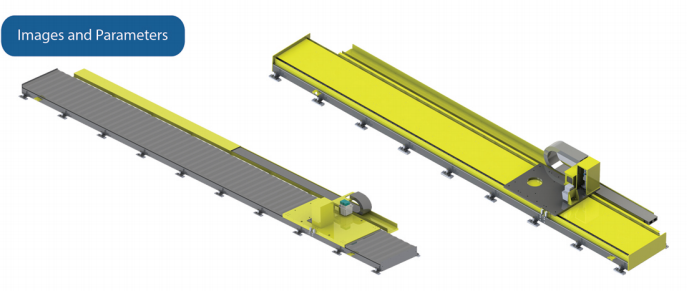

Technical Specifications

Product Name	Organ type single axis linear rail	Pedal type single axis linear rail
Main uses	Welding, handling and loading materials	Welding, handling and loading materials
Model	AUT-FQSW-X-Z-M-length	AUT-TBSW-X-Z-M-length
Standard section length	3.0m/4.0m (Can be freely combined)	3.0m/4.0m (Can be freely combined)
Control the number of axes	Single axis (X axis)	Single axis (X axis)
Installation form	Floor style formal attire	Floor style formal
Transmission mode	Gear and rack drive	Gear and rack drive
Guiding method	Linear guide rail and sliding seat	Linear guide rail and sliding seat
Lubrication method	Automatic lubrication	Automatic lubrication
Lubricating oil	46 # Guide rail oil	46 # Guide rail oil
Gearbox	Precision planetary reducer	Precision planetary reducer
Reduction gear ratio	i=10	i=10
Acceleration	≤1.0m/s² (t≥15)	≤1.0m/s i=10
Acceleration	≤1.0m/s² (t≥15)	≤1.0m/s² (t≥15)
Repetitive positioning accuracy	±0.10mm	±0.10mm
Movement speed	0-60000mm/min	0-60000mm/min
Effective Travel	Total length minus 1500mm	Total length minus 1500mm
Effective installation size of slide	890mm×780mm(L×W)	890mm×780mm(L×W)
Maximum load	Total load ≤ 2800kg End load of handling robot ≤ 300kg	Total load ≤ 2800kg End load of handling robot ≤ 300kg
External dimensions	Length x 1200mm x 900mm (sh External dimensions	Length x 1200mm x 900mm (shield height)

OEM Customization & Robot Integration

We support OEM customization and robot integration for different welding automation applications.

Our robotic welding positioners, linear tracks, guide rails, and gantry systems are customized according to the robot system, workpiece requirements, workspace, payload, and specific application.

Compatible with major industrial robot brands, including ABB, KUKA, FANUC, and YASKAWA.

From individual positioning units to complete robot track and gantry systems, WRS Robotics provides application-specific solutions for system integrators.

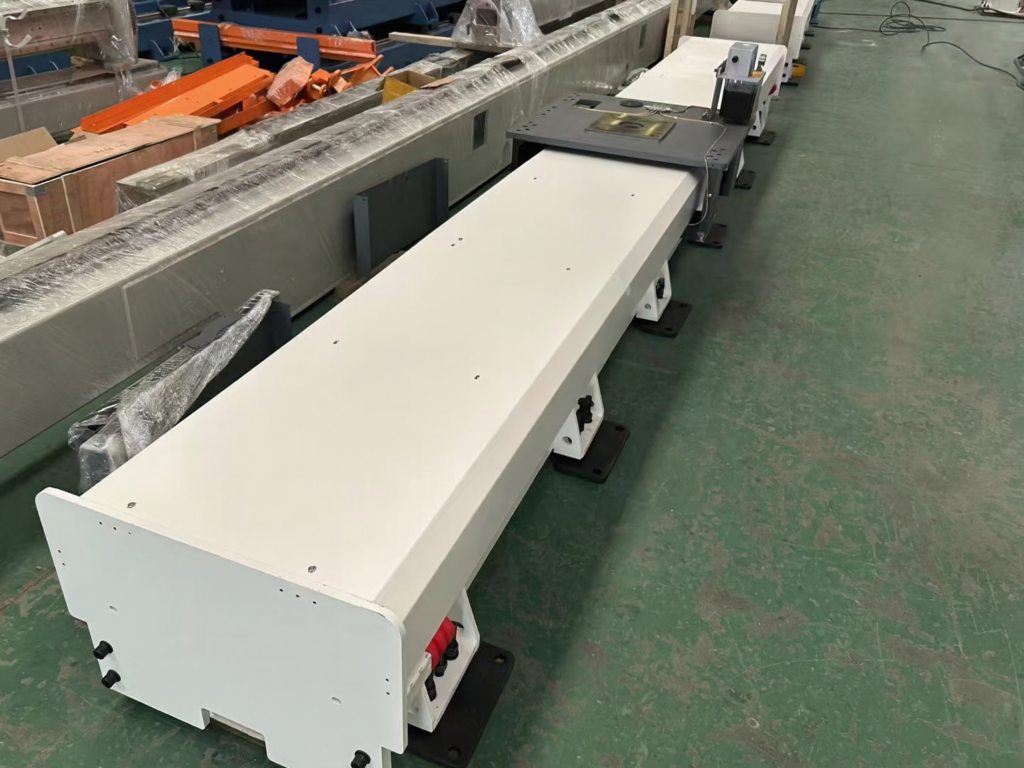

Robot Rail System

Why Choose WRS Robotics?

Direct Manufacturer – In-house design and manufacturing of robotic welding positioners and 7th-axis systems.
OEM Customization – Customized payload, dimensions, stroke, rotation, and mounting configuration.
Multi-Brand Compatibility – Supports ABB, KUKA, FANUC, and YASKAWA robot systems.
Application-Based Design – Solutions are designed around your workpiece, robot, workspace, and welding process.
System Integration Ready – Easy integration into robotic welding cells, production lines, and turnkey automation systems.
Technical Support – 3D CAD, engineering support, and technical assistance for system integrators.
