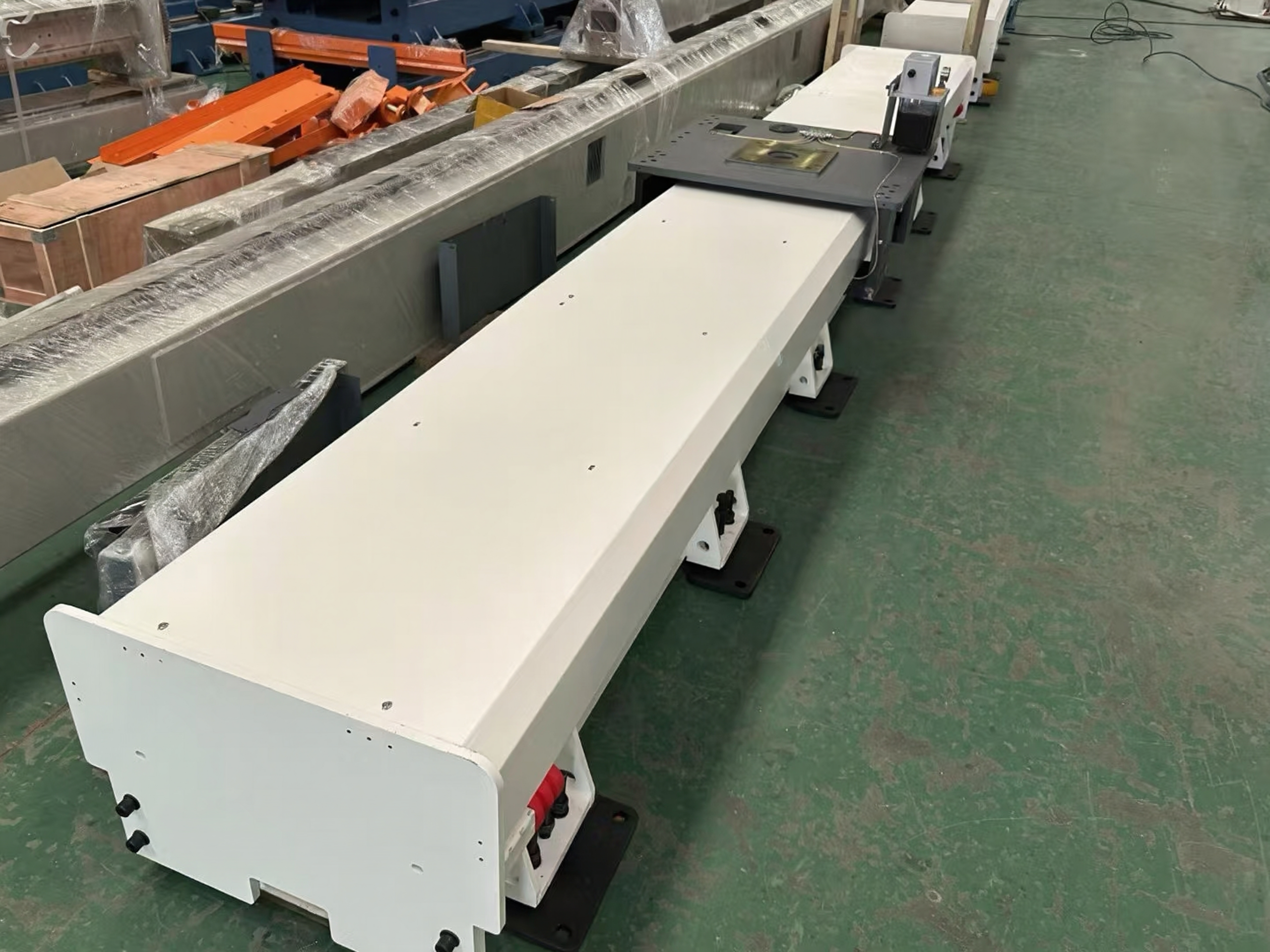

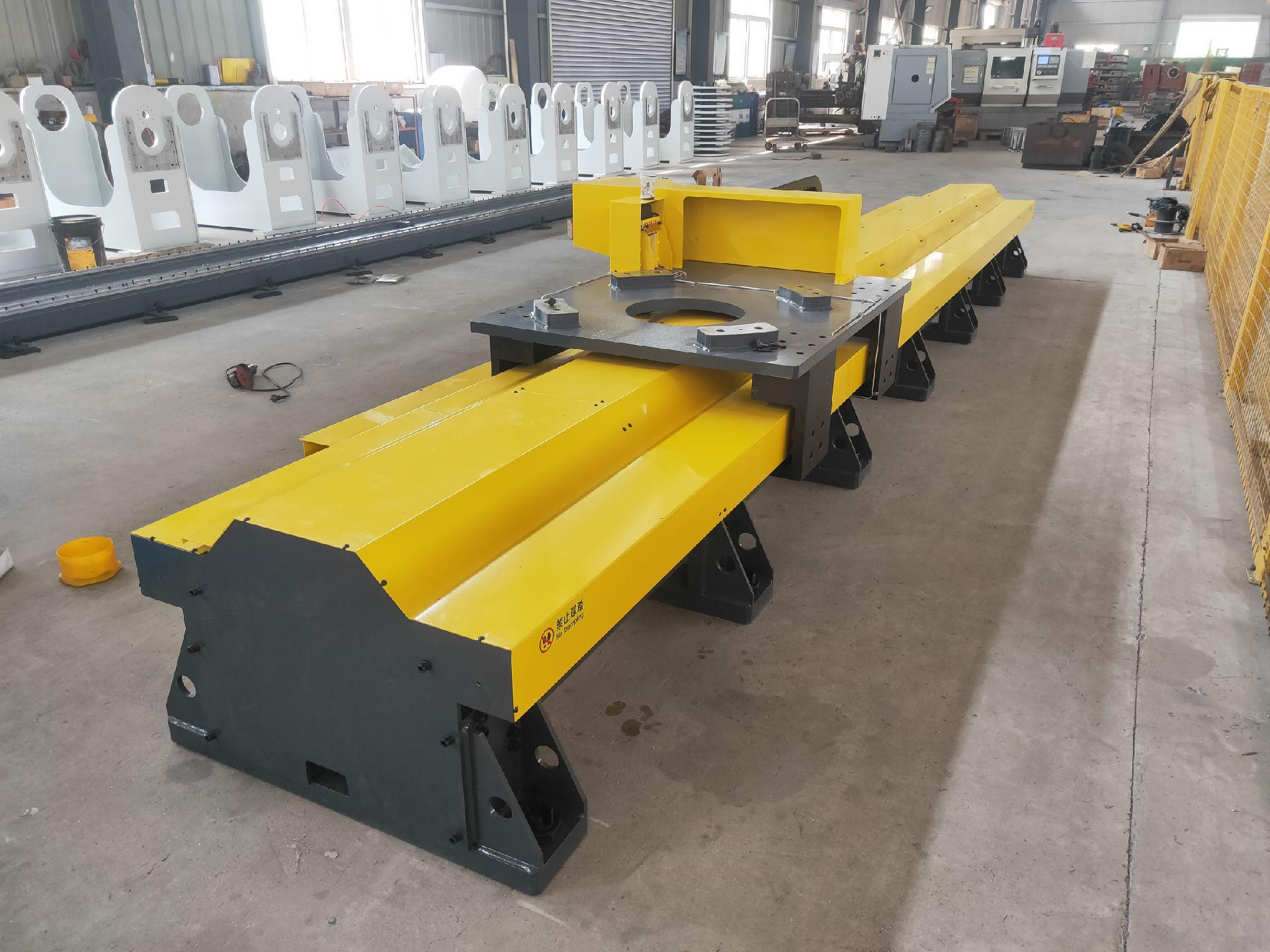

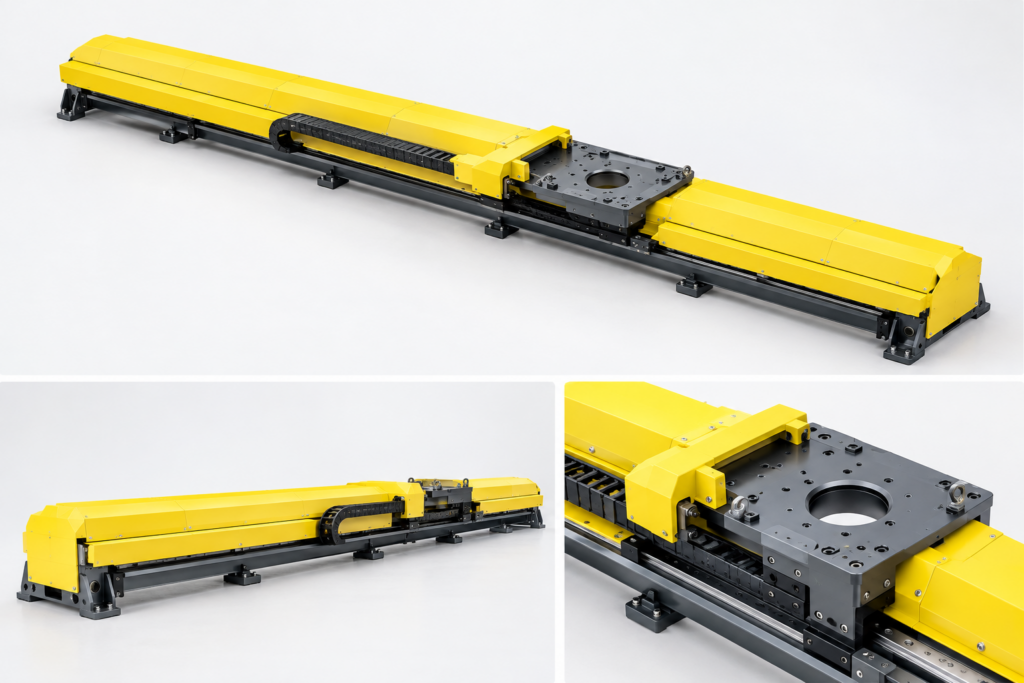

Fully Enclosed Single-Axis Robot Linear Rail
| Product Name | Fully enclosed single axis linear rail |
| Main uses | Welding,handling and loading materials |

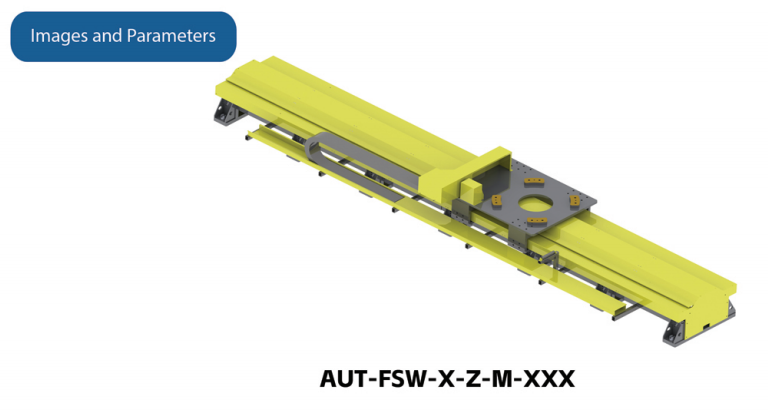

| Model | AUT-FSW-X-Z-M-Length |
| Standard section length | 3.0m/4.0m (Can be freely combined) |
| Control the number of axes | Single axis (X axis) |
| Installation form | Floor style formal attire |
| Transmission mode | Gear and rack drive |
| Guiding method | Linear guide rail and sliding seat |
| Lubrication method | Automatic lubrication |
| Lubricating oil | 46#Guide rail oil |
| Gearbox | Precision planetary reducer |
| Reduction gear ratio | i=10 |
| Acceleration | s1.0m/s2 (tz1S) |
| Repetitive positioning accuracy | ±0.10mm |
| Movement speed | 0-60000mm/min |
| Effective Travel | Total length minus 1500mm |
| Effective installation size of slide | 1200mm x720mm(LxW) |
| Maximum load | Total load ≤ 2800kg End load of handling robot ≤ 300kg |
| External dimensions | Length x 1200mm x 900mm (shield height) |
WRS Robotics’ Fully Enclosed Single-Axis Robot Linear Rail is designed to extend the working range of industrial robots while protecting internal drive components from dust, welding spatter, and other contaminants. Its enclosed structure makes it suitable for demanding industrial environments, including robotic welding, material handling, machine tending, and automated production lines.
As an experienced manufacturer of robot external axes and 7th-axis systems, WRS Robotics provides customized linear rail solutions tailored to different robot models, payload requirements, travel distances, and production layouts.
Key Features & Benefits
- Fully Enclosed Structure: Protects internal transmission components and helps reduce contamination in industrial environments.
- Extended Robot Working Range: Enables industrial robots to travel along a linear axis, expanding their coverage and improving workstation utilization.
- Customized Travel Length: Rail length and configuration can be customized to meet specific application requirements.
- Robot Integration: Designed for integration with industrial robots from FANUC, ABB, KUKA, Yaskawa, and other major brands, subject to application and control-system compatibility.
- Industrial-Grade Construction: Built for reliable operation in demanding automation applications.
- Flexible Automation Solutions: Suitable for robotic welding, material handling, loading and unloading, machine tending, and other industrial automation processes.
Applications
- Robotic welding workstations
- Automated material handling
- Machine tending and loading/unloading
- Multi-station robotic production lines
- Customized industrial automation systems
Customized Robot 7th-Axis Solutions
WRS Robotics manufactures robot linear rails, external axes, and welding positioners for system integrators and automation equipment manufacturers. We offer customized configurations based on robot models, required travel distance, payload, operating environment, and project specifications.
Contact WRS Robotics to discuss your application and obtain a tailored solution.
