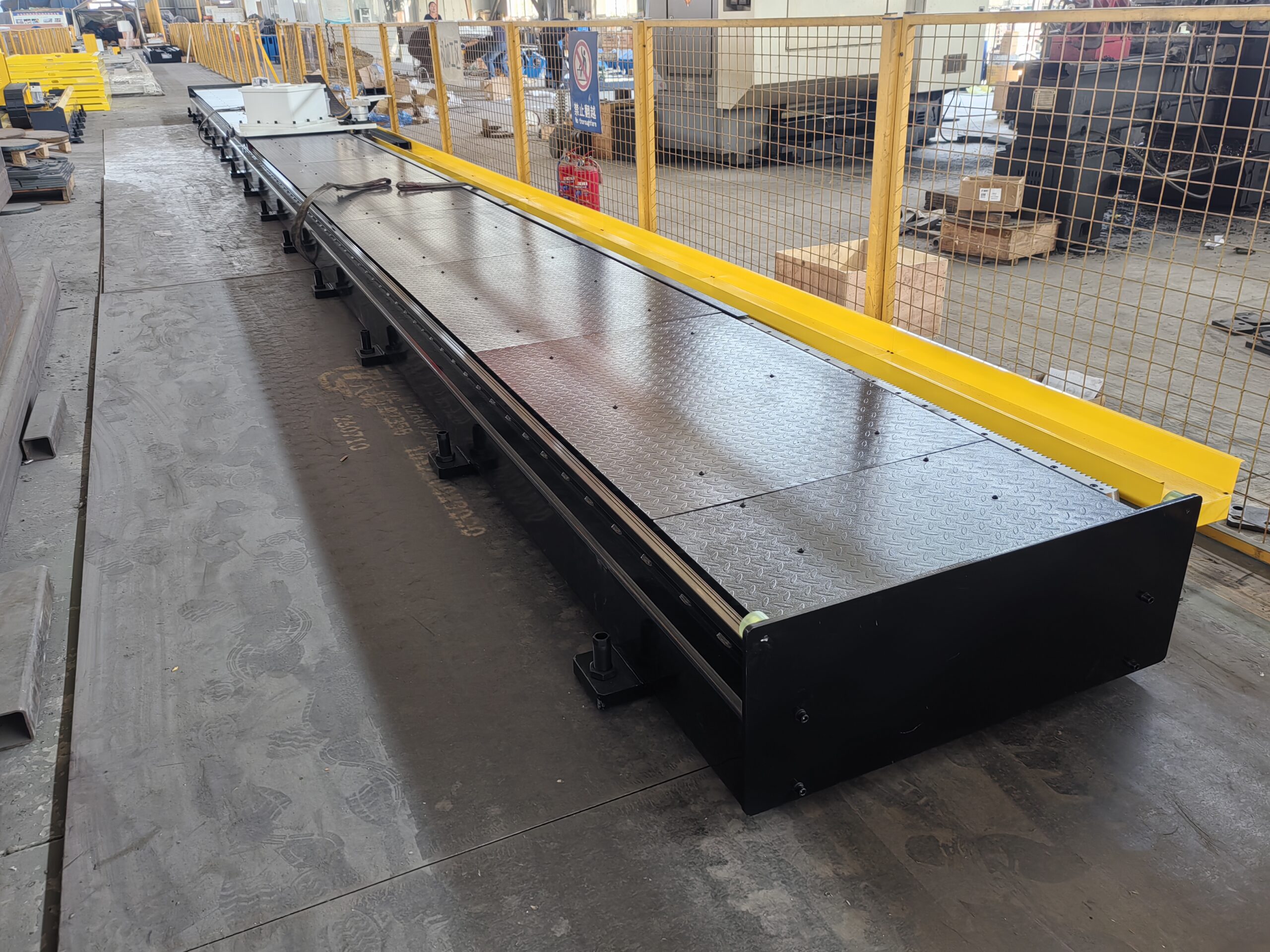

The WRS Heavy-Duty Single-Axis Industrial Linear Rail provides an robust, expandable motion platform designed to transport heavy payloads across extended travel lengths. Constructed with high-strength structural steel/extruded aluminum and precision-ground linear guides, this single-axis robotic module bridges the gap between high-capacity structural stability and micron-level positioning repeatability.
Whether integrated as a standalone linear actuator or implemented as a 7th-axis transfer track for articulated industrial robots, the WRS linear rail ensures smooth operation under high moment loads and severe factory conditions.
| Product Name | Single axis heavy-duty linear rail |
| Main uses | Welding,handling,and multi axis walking base |

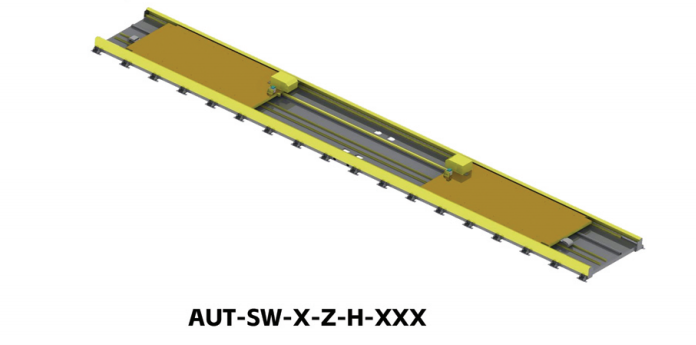

| Model | AUT-SW-X-Z-H-Hength |
| Standard section length | 3.0m/4.0m (Can be freely combined) |
| Control the number of axes | Single axis (X axis) |
| Installation form | Floor style formal attire |
| Transmission mode | Gear and rack drive |
| Guiding method | Linear guide rail and sliding seat |
| Lubrication method | Automatic lubrication |
| Lubricating oil | 46 #Guide rail oil |
| Gearbox | Precision planetary reducer |
| Reduction gear ratio | i=20 |
| Acceleration | s0.5m/s2 (tz 15) |
| epetitive positioning accuracy | ±0.12m |
| Movement speed | 0-30000mm/min |
| Effective Travel | Total length minus 1800mm |
| Effective installation size of slide | 1000mmx 1000mm (LxW) |
| Maximum load | Total load ≤ 8000kg End load of handling robot ≤ 1000kg |
| External dimensions | Length x 1500mmx 1100mm (shield height) |

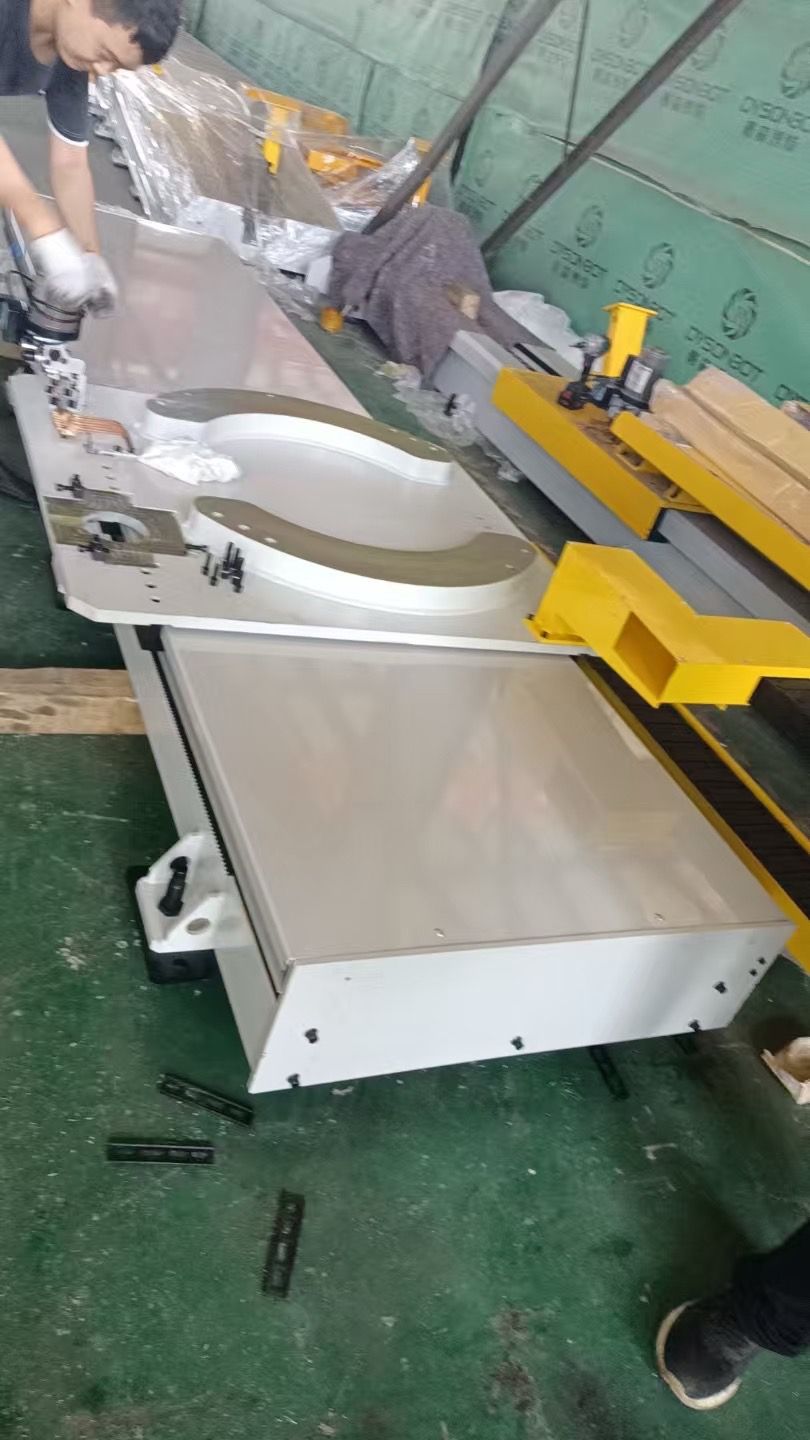

Key Features & Benefits
Extreme Load Handling: Engineered to support single-point dynamic payloads ranging from 200 kg to over 2,000 kg depending on module configuration.
Extended Travel Lengths: Modular rail design enables scalable stroke lengths from 1 meter up to 30+ meters without loss of alignment or precision.
Precision Motion Systems: Available with high-precision ball screw drives for high accuracy or heavy-duty helical rack-and-pinion systems for long-stroke high-velocity applications.
Rigid Structural Construction: Reinforced beam profile minimizes deflection under high cantilevered loads and rapid acceleration profiles.
Universal Motor & Robot Compatibility: Includes pre-engineered mounting flange options compatible with major servo motor brands and industrial robot bases.
Low Maintenance Design: Integrated continuous lubrication channels and durable dust-sealing wipers shield internal guides from abrasive ambient debris.

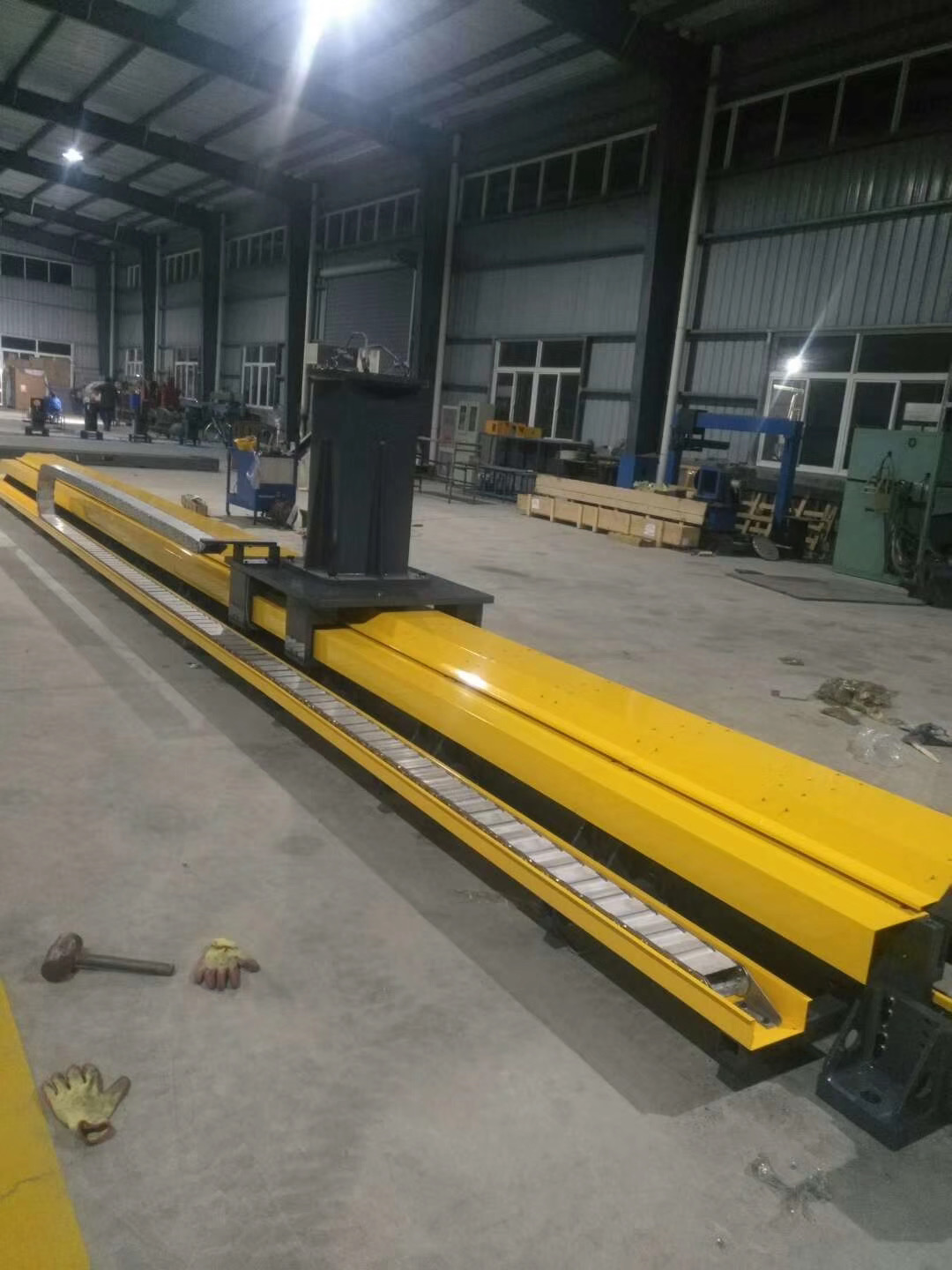

Industrial Applications
Machine Tending & Palletizing: Transferring heavy castings, automotive parts, and machinery sub-assemblies between CNC stations.
7th-Axis Robot Track: Extending the workspace reach of floor-mounted or overhead 6-axis industrial robots.
Heavy Gantry Systems: Overhead X/Y/Z gantries for aerospace manufacturing, glass handling, and steel plate processing.
Automated Welding & Cutting: Precision linear travel for long-bed laser cutting, plasma welding, and structural frame assembly lines.
