Integrating a Welding Positioner with Your Robot: A Step-by-Step Technical Guide

Modern robotic welding systems are no longer limited to robot arm performance alone. To achieve higher weld quality, reduce cycle times, and improve accessibility to complex workpieces, manufacturers increasingly rely on welding positioners integrated directly with industrial robots.

Whether you’re deploying a new robotic welding cell or upgrading an existing automation line, proper integration between the robot and welding positioner is critical for achieving smooth coordinated motion and consistent welding results.

At WRS Robotics, we manufacture high-precision welding positioners, robot motion tracks, and external axis solutions compatible with leading robot brands including ABB, FANUC, KUKA, and Yaskawa. This guide explains the complete integration process from planning and installation to programming and commissioning.

Why Integrate a Welding Positioner with a Robot?

A welding positioner rotates or tilts the workpiece so the robot can maintain the ideal torch angle and welding position throughout the process.

Benefits include:

• Improved weld quality and consistency
• Better torch accessibility
• Reduced robot reach limitations
• Increased productivity
• Shorter cycle times
• Lower programming complexity
• Reduced weld defects and rework

Instead of forcing the robot into awkward positions, the workpiece moves while the robot maintains an optimal welding path.

Understanding Robot Positioner Coordination

In a robotic welding cell, the robot and positioner work as a synchronized system.

The robot controls:

• Torch movement
• Welding parameters
• Weld path execution

The welding positioner controls:

• Rotation
• Tilt movement
• Workpiece orientation

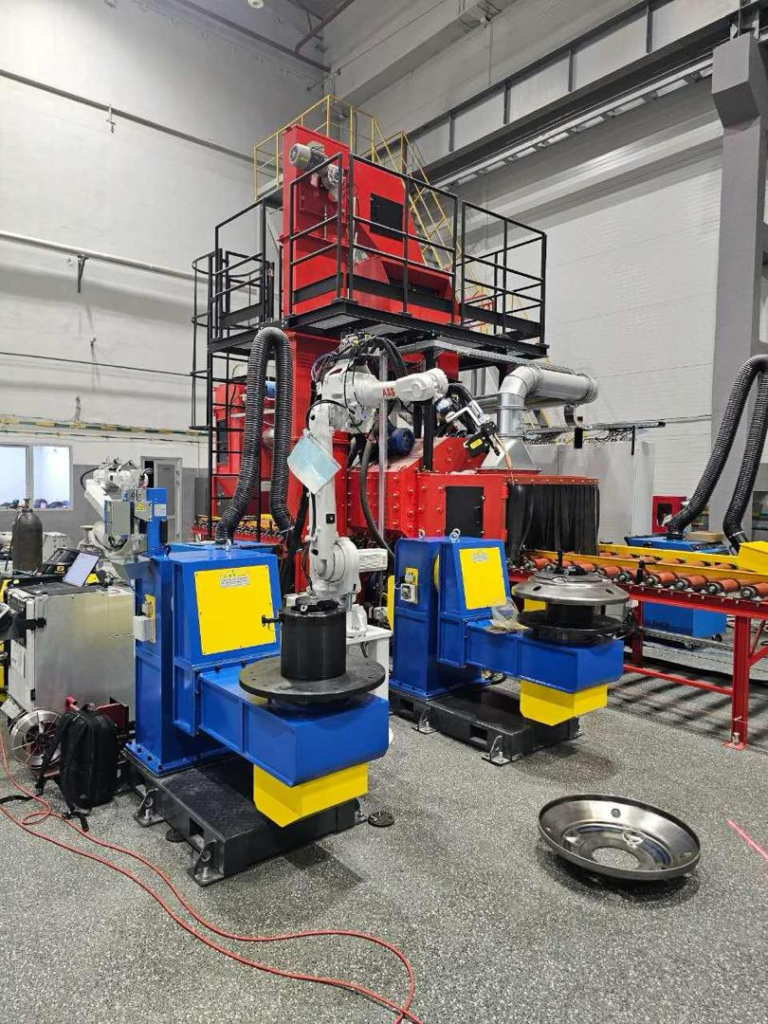

When integrated as an external axis, the robot controller treats the positioner as part of the robot system, allowing coordinated motion between all axes.

For example:

• 6-axis robot + 1-axis positioner = 7-axis system
• 6-axis robot + 2-axis ltypes welding positioner = 8-axis system

This coordinated movement significantly improves welding efficiency for large and complex components.

Step 1: Select the Right Welding Positioner

Before integration begins, choose a positioner suitable for your application.

Key factors include:

Payload Capacity

Consider:

• Workpiece weight
• Fixture weight
• Future production requirements

Common payload ranges:

• 250 kg
• 500 kg
• 1000 kg
• 2000 kg
• 5000 kg

Positioner Type

Common options include:

Single-Axis Positioners

Ideal for:

• Pipe welding
• Cylindrical parts
• Circular welds

Dual-Axis Positioners

Suitable for:

• Structural components
• Automotive frames
• Fabricated assemblies

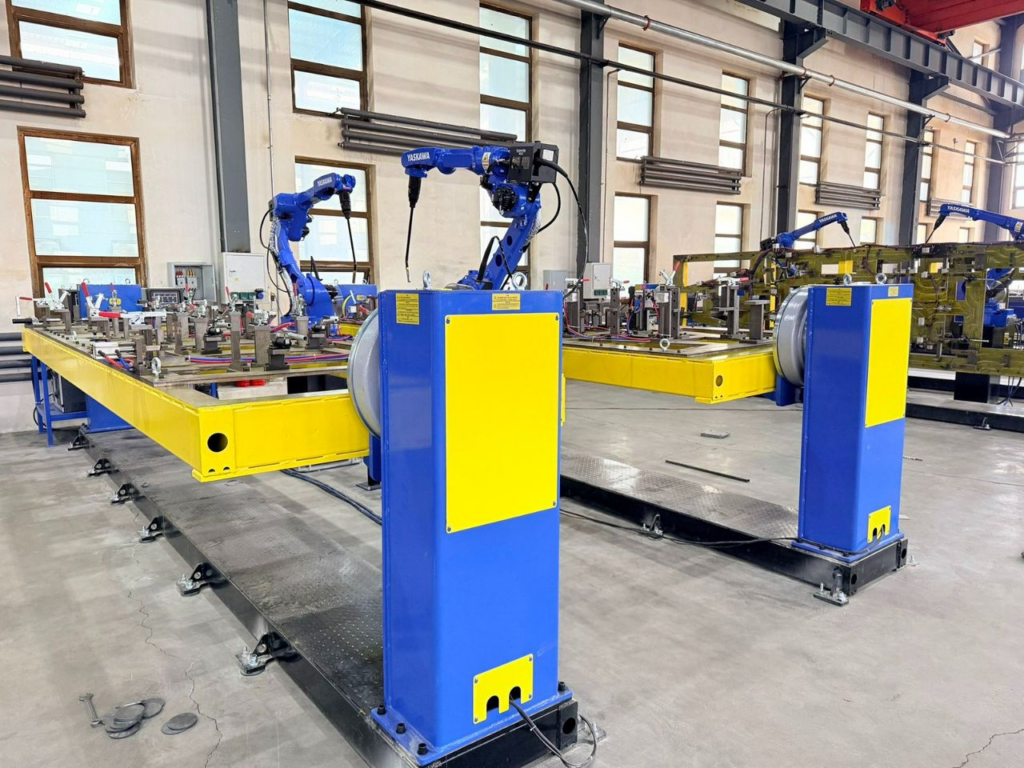

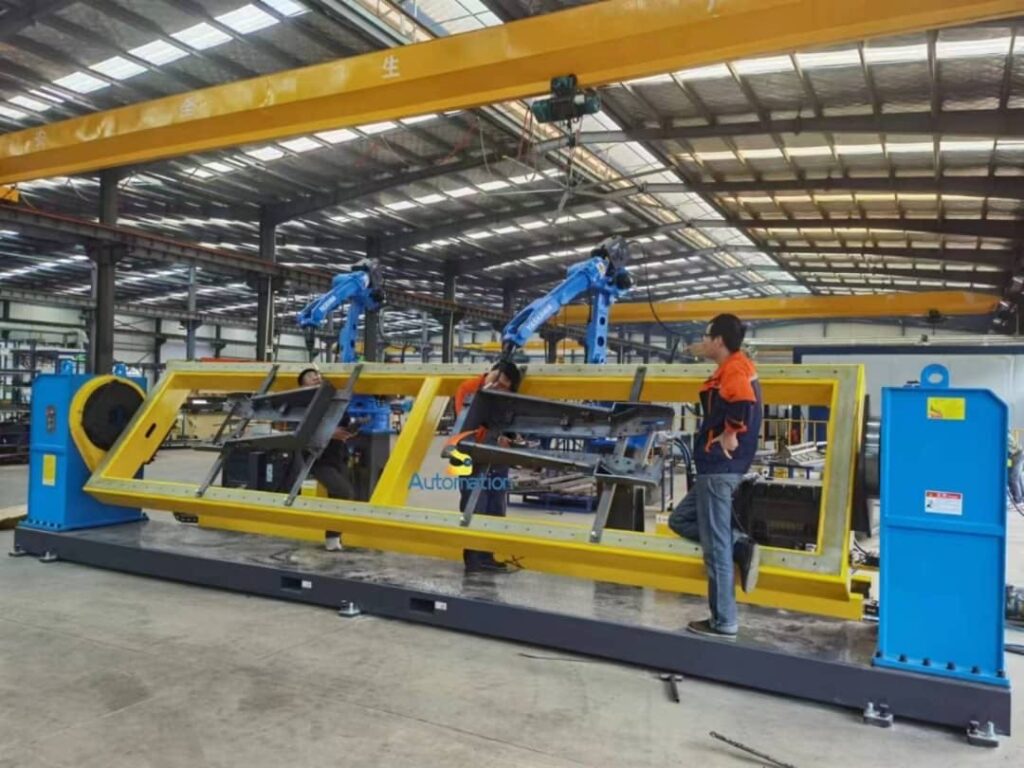

Headstock-Tailstock Positioners

Recommended for:

• Long workpieces
• Chassis components
• Construction machinery parts

Step 2: Mechanical Installation

Proper mechanical installation directly impacts accuracy and service life.

Foundation Preparation

Ensure:

• Level concrete foundation
• Sufficient load-bearing capacity
• Anchor bolt locations verified

Alignment

The robot and positioner must be installed according to the cell layout.

Important considerations:

• Robot reach envelope
• Collision avoidance
• Maintenance accessibility
• Cable routing

Laser alignment tools are often used to verify positioning accuracy.

Fixture Installation

Fixtures should:

• Securely clamp parts
• Minimize vibration
• Allow easy loading and unloading

Poor fixture design is one of the leading causes of welding inaccuracies.

Step 3: Electrical Integration

Once mechanical installation is complete, electrical integration begins.

Servo Motor Connection

Most industrial welding positioners use servo-driven systems.

Components include:

• Servo motor
• Servo amplifier
• Encoder feedback system
• Safety circuits

Robot Controller Integration

The positioner typically connects to:

• ABB IRC5 / OmniCore
• FANUC R-30iB Plus
• KUKA KRC4 / KRC5
• Yaskawa YRC1000

The external axis is configured directly within the robot controller.

Safety Integration

Safety devices may include:

• Emergency stop circuits
• Safety PLC
• Safety scanners
• Interlocked doors
• Safety fencing

All external axes should stop immediately when a safety event occurs.

Step 4: Configure the External Axis

The next step is teaching the robot controller how the positioner moves.

Parameters typically include:

Mechanical Data

• Gear ratio
• Transmission ratio
• Maximum speed
• Rotation limits

Axis Calibration

Calibration establishes the positioner’s zero position.

Methods include:

• Mechanical reference marks
• Encoder references
• Calibration fixtures

Accurate calibration is essential for coordinated motion accuracy.

Step 5: Robot and Positioner Synchronization

This is where true coordinated welding begins.

The robot controller calculates motion for:

• Robot axes
• Positioner axes

simultaneously.

Benefits include:

• Continuous welds
• Smooth torch orientation
• Reduced repositioning time

For example, during circumferential welding, the positioner rotates while the robot maintains a fixed torch angle and travel speed.

This produces highly consistent weld quality.

Step 6: Offline Simulation and Validation

Before production begins, simulation helps identify potential issues.

Popular software includes:

• ABB RobotStudio
• FANUC ROBOGUIDE
• KUKA Sim Pro
• Yaskawa MotoSim

Simulation allows engineers to:

• Verify reachability
• Detect collisions
• Optimize cycle times
• Validate coordinated motion

This significantly reduces commissioning time on-site.

Step 7: Welding Program Development

Programming typically involves:

Teaching Weld Paths

Define:

• Start points
• End points
• Travel speed
• Torch angle

Coordinated Motion Commands

The robot controller generates synchronized movements between the robot and positioner.

Process Parameters

Configure:

• Welding current
• Voltage
• Wire feed speed
• Shielding gas flow

Fine-tuning these parameters ensures optimal weld quality.

Step 8: Testing and Commissioning

Before full production, perform validation tests.

Dry Run Testing

Run the program without welding.

Check for:

• Interference
• Axis limits
• Cable tension
• Position accuracy

Trial Welding

Evaluate:

• Weld penetration
• Weld profile
• Spatter levels
• Distortion

Adjust programs and process parameters as required.

Common Integration Challenges

Positioning Accuracy Errors

Possible causes:

• Improper calibration
• Loose fixtures
• Encoder faults

Collision Risks

Possible causes:

• Incorrect TCP setup
• Poor simulation validation
• Improper workpiece modeling

Inconsistent Weld Quality

Possible causes:

• Positioner backlash
• Fixture instability
• Poor synchronization settings

Proper commissioning eliminates most of these issues before production starts.

Enhancing Productivity with Robot Motion Tracks

For large workpieces, combining a welding positioner with a robot motion track creates a highly flexible welding system.

Advantages include:

• Extended robot working range
• Reduced robot size requirements
• Higher productivity
• Better utilization of floor space

A robot motion track, often called a 7th axis or linear track, allows the robot to travel along the length of large structures while remaining synchronized with the welding positioner.

Applications include:

• Truck chassis welding
• Heavy equipment manufacturing
• Shipbuilding
• Steel fabrication
• Automotive frame welding

Why Choose WRS Robotics?

WRS Robotics specializes in manufacturing robotic welding positioners, robot motion tracks, and customized external axis solutions for industrial automation.

Our solutions are widely integrated with:

• ABB Robots
• FANUC Robots
• KUKA Robots
• Yaskawa Robots

We support:

• Single-axis positioners
• Dual-axis positioners
• Headstock-tailstock systems
• Robot linear tracks
• 7th axis systems
• Custom robotic welding cells

With extensive experience supporting system integrators worldwide, we help customers improve welding quality, increase throughput, and maximize automation ROI.

Final Thoughts

Integrating a welding positioner with an industrial robot is one of the most effective ways to improve weld quality, productivity, and automation efficiency. A properly engineered external axis system allows the robot to work smarter, maintain ideal welding positions, and handle increasingly complex parts.

Whether you are building a new robotic welding cell or upgrading an existing production line, selecting the right positioner and ensuring proper integration are essential for long-term success.
