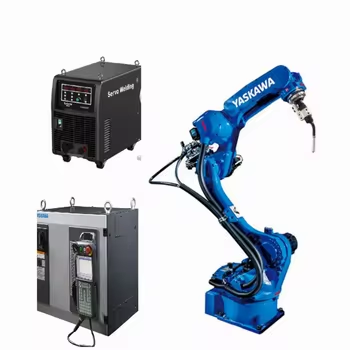

Yaskawa Motoman AR1440 Arc Welding Robot | High-Speed Precision Robotic Arm

Product Description

The Yaskawa AR1440 is the industry’s “workhorse” for a reason. Specifically engineered for arc welding, this 6-axis robot balances a generous 1,440 mm reach with a slim, space-saving design. Whether you are welding automotive frames (like the BYD bumper beams we recently integrated) or complex industrial parts, the AR1440 delivers consistent, high-speed performance that manual welding simply can’t match.

It’s built to work with the YRC1000 controller, making it easy to sync with external axes like our 7th-axis sliders or rotary positioners.

Key Technical Parameters

• Payload: 12 kg (Perfect for heavy-duty welding torches and sensors)

• Maximum Reach: 1,440 mm

• Repeatability: ±0.06 mm

• Number of Axes: 6

• Weight: 150 kg

• Controller Compatibility: YRC1000 / YRC1000micro

  Item	Specification
  NUMBER OF AXES	6
  PAYLOAD	12 kg
  MAX. WORKING RANGE	1440 mm
  REPEATABILITY	0.02 mm
  WEIGHT	150 kg
  POWER SUPPLY	1.5 KVA
  MAXIMUM SPEED S AXIS	260 °/s
  MAXIMUM SPEED L AXIS	230 °/s
  MAXIMUM SPEED U AXIS	260 °/s
  MAXIMUM SPEED R AXIS	470 °/s
  MAXIMUM SPEED B AXIS	470 °/s
  MAXIMUM SPEED T AXIS	700 °/s
  MOUNTING OPTIONS	Ceiling, Wall, Floor

Features That Actually Matter

• Symmetric Wrist Design: Unlike older models, the AR1440 features a symmetric wrist. This gives you equal access to both sides of a part, which is a game-changer when programming complex, circular welds.

• Slim Profile: The arm is lean. This reduces the “interference radius,” meaning you can pack multiple robots closer together on a single line without them bumping into each other.

• Internal Routing: All cables and air lines are routed through the robot’s base and arm. This drastically reduces cable wear and prevents the torch lead from snagging on jigs or workpieces.

• Easy Maintenance: The design allows for quick motor and cable replacement, meaning your downtime is measured in minutes, not shifts.

Why Choose the AR1440? (Advantages)

1. Highest Speed in its Class: The AR-series robots are optimized for high-speed motion, which directly cuts down your cycle time per part.

2. Built for the “7th-Axis”: We’ve found that the AR1440 integrates seamlessly with our linear tracks. Its high acceleration/deceleration rates mean it doesn’t lose precision when moving along a slider.

3. Future-Proof Connectivity: With the YRC1000 controller, you get built-in digital safety functions and easy integration with Industry 4.0 data tracking.

4. Exceptional Rigidity: Even at full reach and maximum speed, the arm maintains its path accuracy, which is critical for maintaining high weld quality and reducing spatter.

Applications

• Automotive Component Welding (Bumper beams, chassis, exhaust)

• Construction Machinery

• Agricultural Equipment

• General Metal Fabrication

Yaskawa Motoman AR1440: Frequently Asked Questions

1. How does the AR1440 compare to the older MA or MH series?

The AR1440 is the direct successor to the MA1440. The biggest jump is in speed and motion control. Yaskawa redesigned the arm to be slimmer and more symmetric, which means it has a much smaller “interference radius.” Basically, it can get into tighter spots and move between weld points faster than the older models, which directly helps you cut down on cycle times.

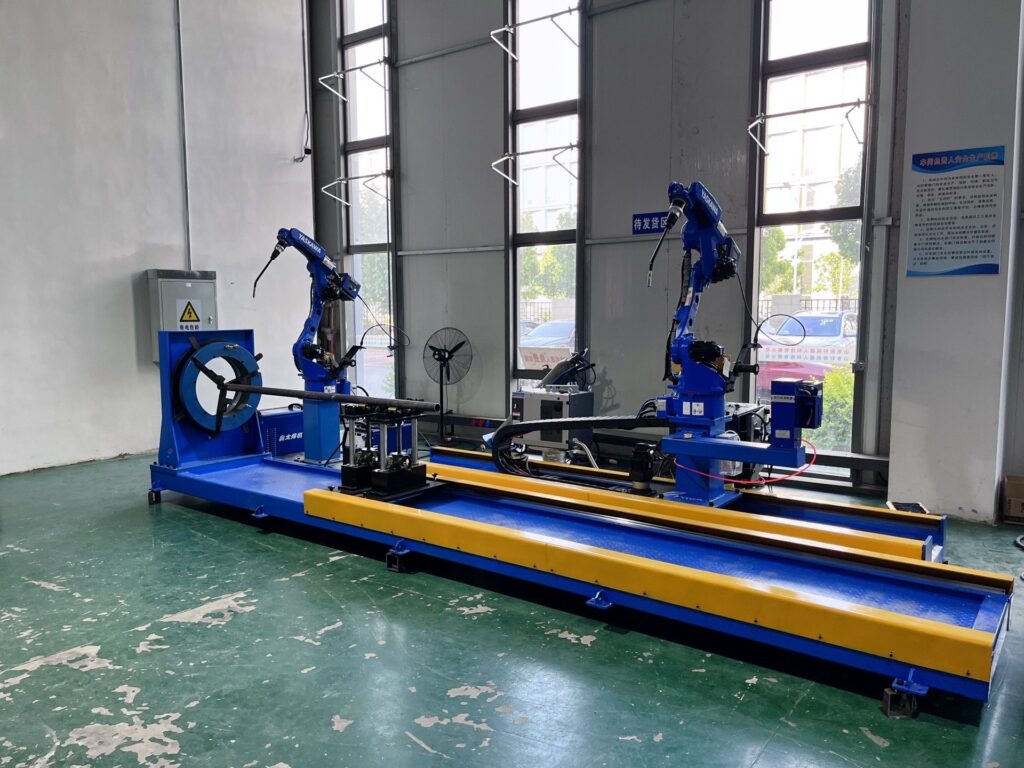

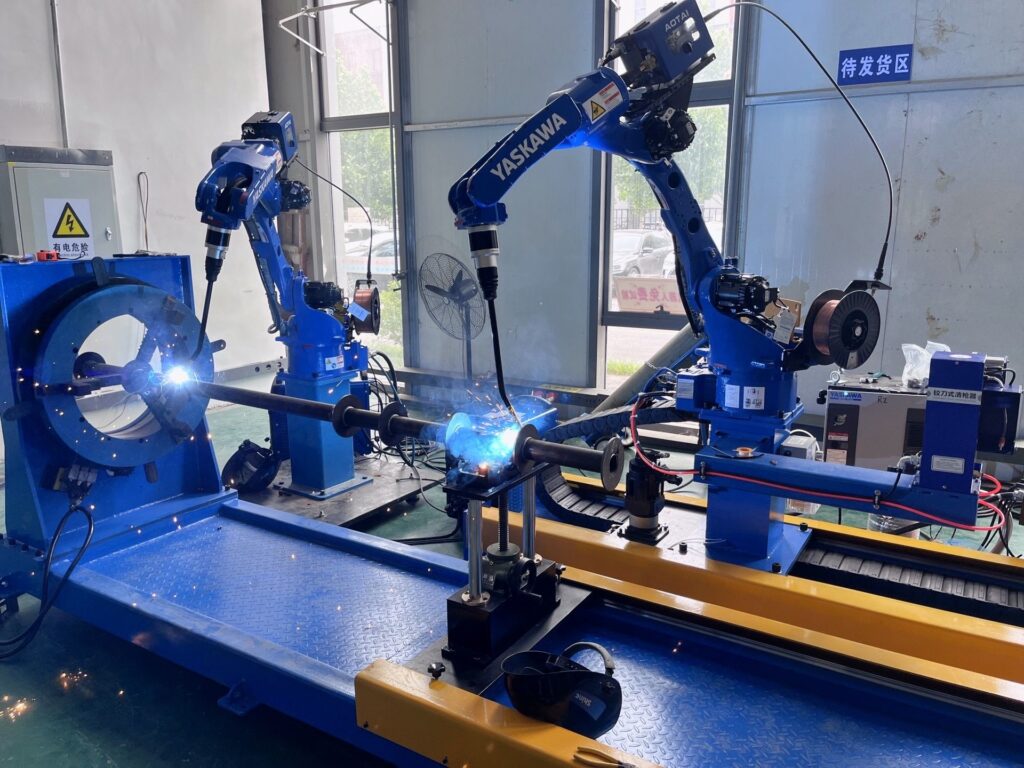

2. Can we mount this robot on a linear track or 7th-axis slider?

Absolutely. In fact, that is one of its strengths. The AR1440 is fully compatible with our 7th-axis linear tracks. Because it uses the YRC1000 controller, the track can be controlled as a fully synchronized external axis. This allows the robot to weld extra-long workpieces, like truck frames or large tanks, without losing path accuracy.

3. Is the 12kg payload enough for a heavy water-cooled torch?

Yes, and then some. Most standard arc welding robots in this class have a 6kg or 10kg limit. By bumping the payload to 12kg, Yaskawa has ensured that even if you’re using a heavy-duty water-cooled torch with a touch sensor or a laser tracking system, the arm won’t be “struggling” or losing its high-speed acceleration capabilities.

4. What welding power sources is it compatible with?

The AR1440 is “brand agnostic.” While it integrates perfectly with Yaskawa’s own power sources, we regularly set these up with Fronius, Miller, Lincoln Electric, and SKS. Using the YRC1000’s digital interface, the robot can control wire feed speed, voltage, and gas flow directly from the teach pendant.

5. Does the “hollow arm” design actually reduce maintenance?

It does. In older robot designs, the welding lead (the “umbilical cord”) would hang off the side and often snag on the jig or wear out from constant rubbing. With the AR1440, the cables are routed through the center of the arm. This keeps the lead stable during high-speed movements, which means you aren’t replacing expensive cables nearly as often.

6. We have a very tight floor plan. Will the AR1440 fit?

Most likely. It has a very slim base (only about 300mm square). Because the cables come out of the back of the base rather than the side, you can mount these robots very close to one another or right up against the edge of a welding cell. If you’re really tight on space, we can also discuss ceiling-mounting options.

Looking for more than just a robot arm? We specialize in syncing the AR1440 with custom 7th-axis tracks and positioners. Let’s talk about building your complete automated welding cell
