Head And Tail Frame Single Axis Robot rotary table Welding Positioner SWP-ZW-500

Description

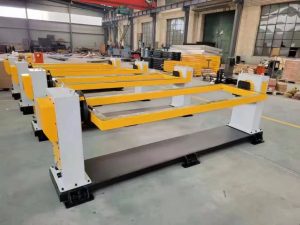

Head And Tail Frame Single Axis Robot Welding Positioner SWP-ZW-500

welding table

We are a leading robotics positioner and linear track manufacturer. Our products are designed to provide high precision and repeatability in positioning, making them ideal welding workpieces for various industrial applications.

A welding positioner is a device used in welding to position the workpiece at a desired angle and orientation. A robot welding positioner is a positioner that is integrated with a robotic welding system.

SWP-ZW-500..

Advantages

Increased Productivity: Robot welding positioners can improve productivity by reducing the time required for setup and repositioning of the workpiece. They can also allow continuous operation, as the robot can weld continuously while the positioner rotates the workpiece.
Improved Weld Quality: When welding a complex or intricate part, it can be difficult for a human welder to maintain consistent weld quality throughout the entire part. A robot welding positioner can ensure the weld is applied consistently to the entire part, resulting in higher-quality welds.
Better Ergonomics: Welding can be a physically demanding and tiring task. Using a robot welding positioner can reduce the need for operators to perform repetitive motions or to lift and move heavy parts, reducing the risk of injury and improving ergonomics.
Increased Safety: Welding can be a hazardous activity, with the risk of burns, fumes, and other safety hazards. A robot welding positioner can help reduce the risk of injury by allowing the operator to work safely.
Cost Savings: Robot welding positioners can help to reduce labor costs by automating the welding process. They can also help to minimize material waste by ensuring that the weld is applied consistently and accurately, reducing the need for rework or scrap

welding positioner

Technical Specification:

NO	Item	SWP-ZW-300	SWP-ZW-500	SWP-ZW-1000	SWP-ZW-2000	SWP-ZW-3000	SWP-ZW-5000-WT-CT	SWP-ZW-5000
1	Rated load	300kg(Within 350mm radius of axis)	500kg(Within 400mm radius of axis)	1000kg(Within 600mm radius of axis)	2000kg(Within 1000mm radius of axis)	3000kg(Within 1000mm radius of axis)	5000kg(Within 12500mm radius of axis)	5000kg(Within 1250mm radius of axis)
2	Full load eccentricity distance	≤200mm (Total clamping height ≤ 550mm)	≤150mm(Total clamping height ≤400mm)	≤200mm(Single-sided clamping Total height ≤ 550mm)	≤200mm(Single-sided clamping Total height ≤ 450mm)	≤200mm(Single-sided clamping Total height ≤ 400mm)	≤300mm(Single-sided clamping Total height ≤700mm)	≤300mm(Single-sided clamping Total height ≤700mm)
3	Rated radius of rotation	R600mm	R650mm	R750mm	R1100mm	R1250mm	R1500mm	R1500mm
4	Rated rotation angle	±360°	±360°	±360°	±360°	±360°	±360°	±360°
5	Rated rotation speed	70°/S	50°/S	50°/S	50°/S	50°/S	28°/S	28°/S
6	Repeated positioning accuracy	±0.06mm ( R=350mm)	±0.08mm (R=400mm)	±0.10mm( R=700mm)	±0.18mm(R=1000mm)	±0.20mm(R=1000mm)	±0.25mm(R=1250mm)	±0.25mm(R=1250mm)
7	Rotary frame size (LxWxH)	2000mm×660mm×90mm	2200mm×800mm×90mm	3000mm×1200mm×130mm	3000mm×2000mm	4500mm×2000mm	(0-10000)mm×2500mm	(0-10000)mm×2500mm
8	Positioner dimension (L×W×H)	2820mm×700mm×960mm	2900mm×700mm×1050mm	3900mm×800mm×1200mm	4000mm×950mm×1500mm	5600mm×1000mm×1700mm	(5000-11000)mm×1350mm×2100mm	(5000-11000)mm×1350mm×2100mm
9	Standard rotary plate	Φ360mm	Φ360mm	Φ390mm	Φ450mm	Φ450mm	Φ800mm	Φ800mm
10	Height of rotary center	760mm	830mm	950mm	1300mm	1450mm	1750mm	1750mm
11	Equipment net weight	400kg	500kg	800kg	1300kg	1800kg	3T-10T	3T-10T
12	Lifting stroke	/	/	/	/	/	1000mm	/
13	Adjustable tailgate travel	/	/	/	/	/	0-5000mm	/
14	Rated lifting speed	/	/	/	/	/	0-800mm/min	/
15	Tailgate travel speed	/	/	/	/	/	0-10000mm/min	/
