Large-Format Fabrication: Using Cartesian Gantry Systems for Precision Welding

Introduction

In the world of large-format fabrication, the limitations of traditional floor-mounted workstations are becoming increasingly apparent. As workpieces grow in scale—think ship sections, crane booms, and massive steel trusses—the standard 6-axis robot often lacks the reach and structural rigidity required for consistent results. This is driving a shift toward Gantry Systems. By utilizing an overhead Cartesian framework, manufacturers can move beyond the circular “reach bubble” of articulated arms and embrace a linear, 3D approach to automated welding.

Why Traditional Layouts Struggle with Scale

Standard workstations are typically anchored to the shop floor, creating permanent obstacles that dictate the flow of the entire facility. This “spatial lock-in” forces logistics, such as AGVs and personnel, to navigate a maze of safety fencing and pedestals. Furthermore, when a robot arm reaches its maximum extension to weld a large component, it often faces “arm sag” or micro-vibrations due to the leverage involved. For precision welding, even a millimeter of deviation can lead to structural failure or costly rework.

The Structural Superiority of Gantry Systems

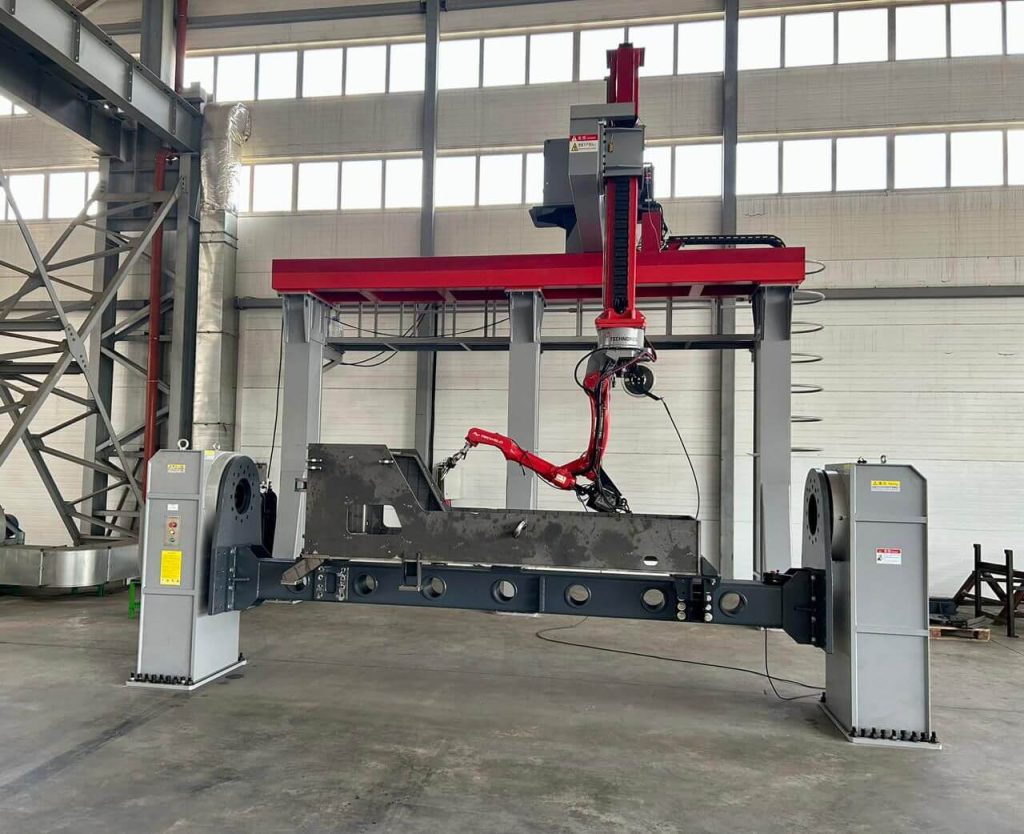

A Cartesian Gantry System operates on X, Y, and Z axes, supported by a bridge structure on both ends. This design offers inherent rigidity that cantilevered arms cannot match.

• Stability:The overhead bridge provides a stable platform for high-torque welding and heavy-load handling up to 500kg.
• Precision:By using precision planetary reducers and gear-rack drives, these systems maintain repetitive positioning accuracy as tight as $\leq 0.1$ mm on the Y-axis.
• Coverage:A standard 30m travel length on the X-axis allows the system to cover massive areas without repositioning the workpiece.

Reclaiming the Factory Floor

One of the most practical benefits of Gantry Systems is the “overhead-first” strategy. By moving the automation to the ceiling, the floor is reclaimed for logistics. This allows for a multi-tier operation where heavy fabrication happens above, while Autonomous Mobile Robots (AMRs) move freely below, unhindered by the pedestals and cages required by floor-based robots.

Simplified Maintenance and Lower TCO

Complexity is often the enemy of uptime. Traditional 6-axis robots contain intricate internal gearboxes that are difficult to service. In contrast, Gantry Systems are built on transparent mechanical principles: linear guides, racks, and pinions. These components are easy to lubricate and monitor for wear. Over a 10-year lifecycle, the reduced need for specialized external technicians leads to a lower Total Cost of Ownership (TCO).



Application in Heavy Industry

We see the highest efficiency gains in sectors dealing with large-scale structures:

• Shipbuilding:Welding hull sections and deck structures with high repeatability.
• Heavy Machinery:Precision welding for excavator arms and crane booms.
• Infrastructure:Fabrication of bridge trusses and high-speed rail supports.
• Automotive:Frame welding for truck chassis and bus skeletons.


Practical Implementation: Scaling Your Automation

Transitioning to Gantry Systems is a modular process. Because the X-axis is composed of free-combinable 4m sections, the system can scale as your production grows. However, successful implementation requires evaluating the building’s structural load capacity and ceiling height. When integrated correctly, these systems reduce installation and commissioning time by up to 40% compared to custom non-modular alternatives.

Conclusion

Large-format fabrication demands a level of reach and stability that traditional workstations simply cannot provide. By adopting Gantry Systems, manufacturers gain the linear freedom to handle massive workpieces with sub-millimeter precision while simultaneously optimizing their floor logistics.
